TCP server socket for use in a Reactor environment. More...

#include <tsReactiveTCPServer.h>

Inheritance diagram for ts::ReactiveTCPServer:

[legend]

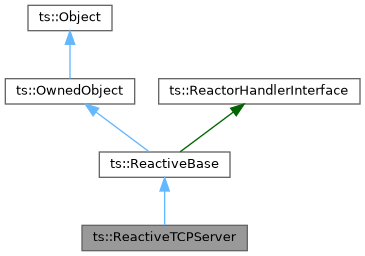

Collaboration diagram for ts::ReactiveTCPServer:

[legend]

Public Member Functions
	ReactiveTCPServer (Reactor &reactor, TCPServer &socket, Object *owner=nullptr)
	Constructor.

virtual	~ReactiveTCPServer () override
	Destructor.

void	cancelAccept (bool silent=false)
	Cancel any pending accept operation on this socket.

bool	isOpen () const
	Check if the reactive socket is open.

bool	isOwned ()
	Check if the object is owned.

template<class OBJECT > requires std::derived_from<OBJECT, ts::Object>
bool	isOwned ()
	Check if the object is owned by an object of a given type.

Object *	owner ()
	Get the address of the optional "owner" object which was specified in the constructor.

template<class OBJECT > requires std::derived_from<OBJECT, ts::Object>
OBJECT *	owner ()
	Get the address of the "owner" object which was specified in the constructor.

Reactor &	reactor ()
	Get a reference to the associated reactor.

Report &	report ()
	Get a reference to the associated report.

TCPServer &	socket ()
	Get a reference to the associated server socket.

bool	startAccept (ReactiveTCPServerHandlerInterface *handler, ReactiveTCPConnection &client, const ObjectPtr &user_data=ObjectPtr())
	Start the operation of accepting a TCP client.

bool	startClose (ReactiveTCPServerHandlerInterface *handler, bool silent=false, const ObjectPtr &user_data=ObjectPtr())
	Start closing the socket.

Protected Types
using	IOQueue = std::list< std::shared_ptr< IOSB > >
	Queues of I/O requests are queues of shared_ptr to IOSB.

using	IOSB = NonBlockingDevice::IOSB
	IOSB shortcut fpr subclasses.

using	IOSet = std::set< std::shared_ptr< IOSB > >
	Unordered set of I/O requests, set of shared_ptr to IOSB.

Protected Member Functions
bool	activateAsynchronousIO ()
	Activate notification for asynchronous I/O.

bool	activateReadReady ()
	Activate read-ready notification for non-blocking I/O.

bool	activateWriteReady ()
	Activate write-ready notification for non-blocking I/O.

bool	cancelAndWaitAsynchronousIO (NonBlockingDevice::IOSB &iosb, bool silent)
	Cancel one specific pending asynchronous I/O and wait for its completion.

void	cancelAsynchronousIO (bool silent)
	Cancel all asynchronous I/O in progress.

template<class REQUEST > requires std::derived_from<REQUEST, ts::Object>
void	cancelQueue (IOQueue &inqueue, IOQueue &outqueue)
	Transfer all requests from one queue to another and mark all I/O as canceled.

void	deactivateAll (bool silent)
	Deactivate all registrations for non-blocking and asynchronous I/O.

void	deactivateAsynchronousIO (bool silent)
	Deactivate notification for asynchronous I/O.

void	deactivateCompletedIO (bool silent)
	Deactivate the execution of processCompletedIO() in the context of a Reactor handler.

void	deactivateReadReady (bool silent)
	Deactivate read-ready notification for non-blocking I/O.

void	deactivateWriteReady (bool silent)
	Deactivate write-ready notification for non-blocking I/O.

virtual void	handleTimer (Reactor &reactor, EventId id)
	Handle a timer in a Reactor.

virtual void	handleUserEvent (Reactor &, EventId) override
	Handle a user-defined event in a Reactor.

virtual void	handleWriteReady (Reactor &reactor, EventId id, int error_code)
	Handle a write-ready event in a Reactor.

std::shared_ptr< IOSB >	removeFromQueue (IOQueue &queue, IOSB *iosb)
	Search and remove a shared_ptr to IOSB, based on an IOSB address.

bool	signalCompletedIO ()
	Trigger the execution of processCompletedIO() in the context of a Reactor handler.

Detailed Description

TCP server socket for use in a Reactor environment.

The class ReactiveTCPServer is a wrapper around TCPServer to handle reactive I/O.

The actual server socket is a separate object. It is initialized and configured by the application. The application shall not directly call accept(), or close() on this socket and delegate these operations to startAccept() and startClose() in class ReactiveTCPServer.

Member Typedef Documentation

◆ IOQueue

using ts::ReactiveBase::IOQueue = std::list<std::shared_ptr<IOSB> >

protectedinherited

Queues of I/O requests are queues of shared_ptr to IOSB.

This is typically used with non-blocking I/O where we must process requests in order. Send and receive requests are structures which are stored in the react_data of the IOSB.

◆ IOSet

using ts::ReactiveBase::IOSet = std::set<std::shared_ptr<IOSB> >

protectedinherited

Unordered set of I/O requests, set of shared_ptr to IOSB.

This is typically used with asynchronous I/O. The ordering is enforced because I/O are started in order of calls from applications. The completion processing is likely the same, but driven by the system I/O Completion Ports and we must not assume any order. Send and receive requests are structures which are stored in the react_data of the IOSB.

Constructor & Destructor Documentation

◆ ReactiveTCPServer()

ts::ReactiveTCPServer::ReactiveTCPServer	(	Reactor &	reactor,
		TCPServer &	socket,
		Object *	owner = `nullptr`
	)

Constructor.

Parameters

[in,out]	reactor	Associated reactor. The reactor object must remain valid as long as this object is valid.
[in,out]	socket	Associated sserver socket. The socket object must remain valid as long as this object is valid. The ReactiveTCPServer must be initialized before the socket is opened.
[in]	owner	Optional address of an "owner" object, typically an instance of class containing this object.

Member Function Documentation

◆ socket()

TCPServer & ts::ReactiveTCPServer::socket ( )

inline

Get a reference to the associated server socket.

Returns: A reference to the associated socket.

◆ isOpen()

bool ts::ReactiveTCPServer::isOpen ( ) const

inline

Check if the reactive socket is open.

This is different from Socket::isOpen() during the closing phase, after startClose() has been called but before the underlying socket is fully closed.

Returns: True if the reactive socket is open, false if the underlying socket is closed or if startClose() has been called.

◆ startAccept()

bool ts::ReactiveTCPServer::startAccept	(	ReactiveTCPServerHandlerInterface *	handler,
		ReactiveTCPConnection &	client,
		const ObjectPtr &	user_data = `ObjectPtr()`
	)

Start the operation of accepting a TCP client.

Parameters

[in]	handler	Handler class to call when the accept operation completes. The method handleTCPClientAccepted() will be called when the accept() operation completes. If nullptr, no handler is called.
[out]	client	This object receives the new connection. The ReactiveTCPConnection must remain valid as long as the accept operation is in progress and the handler is not called.
[in]	user_data	A shared pointer which will be passed unmodified to handler.

Returns: True on success, false on error. Success means that the connection was successfully started. The final status of the I/O will be transmitted in the handler.

◆ cancelAccept()

void ts::ReactiveTCPServer::cancelAccept ( bool silent = false )

Cancel any pending accept operation on this socket.

Parameters

[in] silent If true, do not report errors through the logger.

◆ startClose()

bool ts::ReactiveTCPServer::startClose	(	ReactiveTCPServerHandlerInterface *	handler,
		bool	silent = `false`,
		const ObjectPtr &	user_data = `ObjectPtr()`
	)

Start closing the socket.

Pending asynchronous operations are canceled. The actual cancelation will take place later. In the meantime, the user's data buffers for these pending operations are busy and shall not be destroyed / deallocated by the application. The close operation terminates when the handler handleTCPClosed() is invoked. At this point, no more operation is pending and the application may get rid of data buffers.

Parameters

[in]	handler	Handler class to call when the close operation completes. The method handleTCPServerClosed~() will be called. If nullptr, no handler is called.
[in]	silent	If true, do not report errors through the logger.
[in]	user_data	A shared pointer which will be passed unmodified to handler.

Returns: True on success, false on error.

◆ reactor()

Reactor & ts::ReactiveBase::reactor ( )

inlineinherited

Get a reference to the associated reactor.

Returns: A reference to the associated reactor.

◆ report()

Report & ts::ReactiveBase::report ( )

inlineinherited

Get a reference to the associated report.

Returns: A reference to the associated report.

◆ removeFromQueue()

std::shared_ptr< IOSB > ts::ReactiveBase::removeFromQueue	(	IOQueue &	queue,
		IOSB *	iosb
	)

protectedinherited

Search and remove a shared_ptr to IOSB, based on an IOSB address.

Search from the front (end) of the queue since a completed I/O is likely on the front.

Parameters

[in,out]	queue	The queue from which to remove iosb.
[in]	iosb	Standard pointer to an IOSB to search and remove.

Returns: The removed shared_ptr to IOSB, or a null pointer if iosb is not found.

◆ cancelQueue()

template<class REQUEST >
requires std::derived_from<REQUEST, ts::Object>

void ts::ReactiveBase::cancelQueue	(	IOQueue &	inqueue,
		IOQueue &	outqueue
	)

protectedinherited

Transfer all requests from one queue to another and mark all I/O as canceled.

Template Parameters

REQUEST The subclass of Object which is set in react_data of all requests in inqueue.

Parameters

[in,out]	inqueue	The queue from which all requests are removed.
[in,out]	outqueue	The queue which receives all canceled requests.

◆ signalCompletedIO()

bool ts::ReactiveBase::signalCompletedIO ( )

protectedinherited

Trigger the execution of processCompletedIO() in the context of a Reactor handler.

Create if necessary and then signal a dedicated user event.

Returns: True on success, false on error.

◆ deactivateCompletedIO()

void ts::ReactiveBase::deactivateCompletedIO ( bool silent )

protectedinherited

Deactivate the execution of processCompletedIO() in the context of a Reactor handler.

Deactivate and delete the dedicated user event.

Parameters

[in] silent If true, do not report errors through the logger.

◆ activateReadReady()

bool ts::ReactiveBase::activateReadReady ( )

protectedinherited

Activate read-ready notification for non-blocking I/O.

Returns: True on success, false on error.

◆ deactivateReadReady()

void ts::ReactiveBase::deactivateReadReady ( bool silent )

protectedinherited

Deactivate read-ready notification for non-blocking I/O.

Parameters

[in] silent If true, do not report errors through the logger.

◆ activateWriteReady()

bool ts::ReactiveBase::activateWriteReady ( )

protectedinherited

Activate write-ready notification for non-blocking I/O.

Returns: True on success, false on error.

◆ deactivateWriteReady()

void ts::ReactiveBase::deactivateWriteReady ( bool silent )

protectedinherited

Deactivate write-ready notification for non-blocking I/O.

Parameters

[in] silent If true, do not report errors through the logger.

◆ activateAsynchronousIO()

bool ts::ReactiveBase::activateAsynchronousIO ( )

protectedinherited

Activate notification for asynchronous I/O.

Returns: True on success, false on error.

◆ deactivateAsynchronousIO()

void ts::ReactiveBase::deactivateAsynchronousIO ( bool silent )

protectedinherited

Deactivate notification for asynchronous I/O.

Parameters

[in] silent If true, do not report errors through the logger.

◆ cancelAsynchronousIO()

void ts::ReactiveBase::cancelAsynchronousIO ( bool silent )

protectedinherited

Cancel all asynchronous I/O in progress.

The cancelation occurs in the background and end of canceled asynchronous I/O will be notified.

Parameters

[in] silent If true, do not report errors through the logger.

◆ cancelAndWaitAsynchronousIO()

bool ts::ReactiveBase::cancelAndWaitAsynchronousIO	(	NonBlockingDevice::IOSB &	iosb,
		bool	silent
	)

protectedinherited

Cancel one specific pending asynchronous I/O and wait for its completion.

Warning: This is a blocking call. It shall be used in case of trouble only.

Parameters

[in,out]	iosb	The asynchronous I/O status block.
[in]	silent	If true, do not report errors through the logger.

Returns: True on success, false on error.

◆ deactivateAll()

void ts::ReactiveBase::deactivateAll ( bool silent )

protectedinherited

Deactivate all registrations for non-blocking and asynchronous I/O.

Parameters

[in] silent If true, do not report errors through the logger.

◆ handleUserEvent()

virtual void ts::ReactiveBase::handleUserEvent	(	Reactor &	reactor,
		EventId	id
	)

overrideprotectedvirtualinherited

Handle a user-defined event in a Reactor.

Parameters

[in,out]	reactor	Reactor into which the handler is invoked.
[in]	id	Id of the event which was signaled.

Reimplemented from ts::ReactorHandlerInterface.

◆ owner() [1/2]

Object * ts::OwnedObject::owner ( )

inlineinherited

Get the address of the optional "owner" object which was specified in the constructor.

Returns: Address of the "owner" object or a null pointer if there was none.

◆ owner() [2/2]

template<class OBJECT >
requires std::derived_from<OBJECT, ts::Object>

OBJECT * ts::OwnedObject::owner ( )

inherited

Get the address of the "owner" object which was specified in the constructor.

This template version requires that the owner objet is set and of type OBJECT, or some subclass of it. If there is no owner object or if it is not compatible with the template class OBJECT, this is a fatal error and the application is terminated.

Template Parameters

OBJECT A subclass of Object

Returns: Address of the "owner" object or a null pointer if there was none.

◆ isOwned() [1/2]

bool ts::OwnedObject::isOwned ( )

inlineinherited

Check if the object is owned.

Returns: True if this object has an owner, false otherwise.

◆ isOwned() [2/2]

template<class OBJECT >
requires std::derived_from<OBJECT, ts::Object>

bool ts::OwnedObject::isOwned ( )

inlineinherited

Check if the object is owned by an object of a given type.

Template Parameters

OBJECT A subclass of Object

Returns: True if this object has an owner by an object of type OBJECT, false otherwise.

◆ handleTimer()

virtual void ts::ReactorHandlerInterface::handleTimer	(	Reactor &	reactor,
		EventId	id
	)

virtualinherited

Handle a timer in a Reactor.

Parameters

[in,out]	reactor	Reactor into which the handler is invoked.
[in]	id	Id of the timer which expires.

◆ handleWriteReady()

virtual void ts::ReactorHandlerInterface::handleWriteReady	(	Reactor &	reactor,
		EventId	id,
		int	error_code
	)

virtualinherited

Handle a write-ready event in a Reactor.

This handler is only invoked in the non-blocking I/O model.

Parameters

[in,out]	reactor	Reactor into which the handler is invoked.
[in]	id	Id of the event which was signaled.
[in]	error_code	System-specific error code, zero on success, SYS_ERROR in case of unknown error.

The documentation for this class was generated from the following file:

tsReactiveTCPServer.h

Public Member Functions

Protected Types

Protected Member Functions

Detailed Description

Member Typedef Documentation

◆ IOQueue

◆ IOSet

Constructor & Destructor Documentation

◆ ReactiveTCPServer()

Member Function Documentation

◆ socket()

◆ isOpen()

◆ startAccept()

◆ cancelAccept()

◆ startClose()

◆ reactor()

◆ report()

◆ removeFromQueue()

◆ cancelQueue()

◆ signalCompletedIO()

◆ deactivateCompletedIO()

◆ activateReadReady()

◆ deactivateReadReady()

◆ activateWriteReady()

◆ deactivateWriteReady()

◆ activateAsynchronousIO()

◆ deactivateAsynchronousIO()

◆ cancelAsynchronousIO()

◆ cancelAndWaitAsynchronousIO()

◆ deactivateAll()

◆ handleUserEvent()

◆ owner() [1/2]

◆ owner() [2/2]

◆ isOwned() [1/2]

◆ isOwned() [2/2]

◆ handleTimer()

◆ handleWriteReady()
