ts::ReactiveWorkerPool Class Reference

#include <tsReactiveWorkerPool.h>

Inheritance diagram for ts::ReactiveWorkerPool:

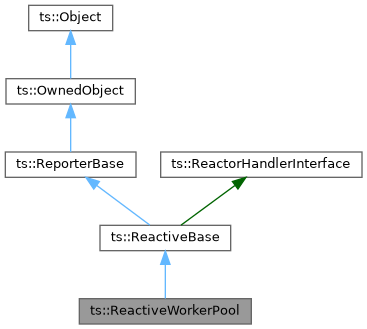

Collaboration diagram for ts::ReactiveWorkerPool:

Public Member Functions

 ReactiveWorkerPool (Reactor &reactor)
virtual ~ReactiveWorkerPool () override
size_t currentBusyThreads () const
size_t currentThreads () const
size_t maxThreads () const
bool muteReport (bool mute)
Reactor & reactor ()
virtual Report & report () const override
void setMaxThreads (size_t count)
Report * setReport (Report *report)
ReporterBase * setReport (ReporterBase *delegate)
void setStackSize (size_t size)
bool signalQueuedOperations ()
bool startWork (ReactiveWorkerInterface *work, ReactiveWorkerHandlerInterface *handler, const ObjectPtr &user_data=ObjectPtr())
void waitForTermination (bool cancel_pending=false)

Static Public Member Functions

static int SilentLevel (bool silent, int default_severity=Severity::Error)

Static Public Attributes

static constexpr size_t DEFAULT_MAX_THREADS = 8

Protected Member Functions

bool createSignalQueuedOperations ()
void deactivateQueuedOperations (bool silent)
virtual void handleAsynchronousIO (Reactor &reactor, EventId id, Device::IOSB &iosb, size_t io_size)
virtual void handleBroadcastEvent (Reactor &reactor, int error_code, const ObjectPtr &user_data)
virtual void handleProcessTermination (Reactor &reactor, EventId id, int pid)
virtual void handleReadReady (Reactor &reactor, EventId id, int error_code)
virtual void handleTimer (Reactor &reactor, EventId id)
virtual void handleUserEvent (Reactor &, EventId) override
virtual void handleWriteReady (Reactor &reactor, EventId id, int error_code)
virtual void processQueuedOperations () override
bool uncheckedSignalQueuedOperations ()

Detailed Description

Pool of worker threads in a Reactor environment.

A Reactor event loop is a mono-thread synchronous environment. Each callback shall run without blocking I/O and without lengthy operations. When an application needs to run lengthy tasks in reactor callbacks, it must delegate these tasks in a worker thread. An instance of ReactiveWorkerPool can be used in association with a reactor to execute these lengthy tasks.

The instance of ReactiveWorkerPool is not thread-safe and should be used in the reactor thread only.

Constructor & Destructor Documentation

◆ ReactiveWorkerPool()

ts::ReactiveWorkerPool::ReactiveWorkerPool ( Reactor & reactor)
explicit

Constructor.

Parameters
[in,out]reactorAssociated reactor. The reactor object must remain valid as long as this object is valid.

◆ ~ReactiveWorkerPool()

virtual ts::ReactiveWorkerPool::~ReactiveWorkerPool ( )
overridevirtual

Destructor.

Member Function Documentation

◆ setMaxThreads()

void ts::ReactiveWorkerPool::setMaxThreads ( size_t count)
inline

Set the maximum number of worker threads in the pool. This value only applies to future threads which will be created if the load increases. If the pool already started more threads, the number of active threads is not reduced. The default maximum number of worker threads in the pool for newly created ReactiveWorkerPool instances is DEFAULT_MAX_THREADS.

Parameters
[in]countMaximum number of worker threads in the pool.

◆ maxThreads()

size_t ts::ReactiveWorkerPool::maxThreads ( ) const
inline

Get the maximum number of worker threads in the pool.

Returns
The maximum number of worker threads in the pool.

◆ currentThreads()

size_t ts::ReactiveWorkerPool::currentThreads ( ) const
inline

Get the current number of worker threads in the pool.

Returns
The current number of worker threads in the pool. This is informational only.

◆ currentBusyThreads()

size_t ts::ReactiveWorkerPool::currentBusyThreads ( ) const
inline

Get the current number of worker threads currently busy executing worker tasks.

Returns
The current number of busy worker threads in the pool. This is informational only and can change at any time.

◆ setStackSize()

void ts::ReactiveWorkerPool::setStackSize ( size_t size)
inline

Set the stack size in bytes of worker threads in the pool. This value only applies to future threads which will be created if the load increases. By default, the stack size of new threads depends on the operating system.

Parameters
[in]sizeStack size in bytes of new worker threads in the pool. When zero, use the system default stack size.
See also
ThreadAttributes::setStackSize()

◆ startWork()

bool ts::ReactiveWorkerPool::startWork ( ReactiveWorkerInterface * work,
ReactiveWorkerHandlerInterface * handler,
const ObjectPtr & user_data = ObjectPtr() )

Start a lengthy task in a delegated worker thread and return immediately. If a worker thread is idle, the work is immediately passed to it. Otherwise, if the maximum number of worker threads is not reached yet, a new worker thread is created to execute the work. Otherwise, the work is delayed until a worker thread becomes idle.

Parameters
[in]workAn object instance which executes the work. Cannot be null.
[in]handlerHandler class to call when the work completes. If nullptr, no handler is called.
[in]user_dataA shared pointer which will be passed unmodified to work and handler.
Returns
True on success, false on error.

◆ waitForTermination()

void ts::ReactiveWorkerPool::waitForTermination ( bool cancel_pending = false)

Wait for all worker threads to become idle and terminate all worker threads.

Parameters
[in]cancel_pendingIf true, cancel works which are not started yet.

◆ processQueuedOperations()

virtual void ts::ReactiveWorkerPool::processQueuedOperations ( )
overrideprotectedvirtual

This virtual method processes operations in the context of a Reactor handler. This is dedicated to operations which must be serialized from an application perspective. These operations are typically queued when triggered from a method which is called by the application. When the reactor processes events, we are sure that the application is not executing a handler. The default implementation does nothing. A subclass should override it if it calls signalQueuedOperations().

Reimplemented from ts::ReactiveBase.

◆ reactor()

Reactor & ts::ReactiveBase::reactor ( )
inlineinherited

Get a reference to the associated reactor.

Returns
A reference to the associated reactor.

◆ signalQueuedOperations()

bool ts::ReactiveBase::signalQueuedOperations ( )
inherited

Trigger the execution of processQueuedOperations() in the context of a Reactor handler. Create if necessary and then signal a dedicated user event.

Returns
True on success, false on error.

◆ deactivateQueuedOperations()

void ts::ReactiveBase::deactivateQueuedOperations ( bool silent)
protectedinherited

Deactivate the execution of processQueuedOperations() in the context of a Reactor handler. Deactivate and delete the dedicated user event.

Parameters
[in]silentIf true, do not report errors through the logger.

◆ createSignalQueuedOperations()

bool ts::ReactiveBase::createSignalQueuedOperations ( )
protectedinherited

Create, if necessary, the dedicated user event for signalQueuedOperations(). Useless if signalQueuedOperations() is used. Only required with use of uncheckedSignalQueuedOperations().

Returns
True on success, false on error.

◆ uncheckedSignalQueuedOperations()

bool ts::ReactiveBase::uncheckedSignalQueuedOperations ( )
protectedinherited

Trigger the execution of processQueuedOperations() from another thread. The event must have been previously created, either using createSignalQueuedOperations() or signalQueuedOperations().

Returns
True on success, false on error.

◆ handleUserEvent()

virtual void ts::ReactiveBase::handleUserEvent ( Reactor & reactor,
EventId id )
overrideprotectedvirtualinherited

Handle a user-defined event in a Reactor.

Parameters
[in,out]reactorReactor into which the handler is invoked.
[in]idId of the event which was signaled.

Reimplemented from ts::ReactorHandlerInterface.

◆ report()

virtual Report & ts::ReporterBase::report ( ) const
overridevirtualinherited

Access the Report which is associated with this object. Can be called from another thread only if the Report object is thread-safe.

Returns
A reference to the associated report.

Implements ts::ReporterInterface.

◆ setReport() [1/2]

Report * ts::ReporterBase::setReport ( Report * report)
inherited

Associate this object with another Report to log errors.

Parameters
[in]reportWhere to report errors. The report object must remain valid as long as this object exists or setReport() is used with another Report object. If report is null, log messages are discarded.
Returns
The address of the previous Report object or a null pointer if there was none.

◆ setReport() [2/2]

ReporterBase * ts::ReporterBase::setReport ( ReporterBase * delegate)
inherited

Associate this object with another ReporterBase to log errors.

Parameters
[in]delegateUse the report of another ReporterBase. If delegate is null, the previous explicit Report is used..
Returns
The address of the previous ReporterBase object or a null pointer if there was none.

◆ muteReport()

bool ts::ReporterBase::muteReport ( bool mute)
inherited

Temporarily mute the associated report.

Parameters
[in]muteIt true, report() will return a null report (log messages are discarded), until muteReport() is invoked again with mute set to false.
Returns
Previous state of the mute field.

◆ SilentLevel()

int ts::ReporterBase::SilentLevel ( bool silent,
int default_severity = Severity::Error )
inlinestaticinherited

Compute a log severity level from a "silent" parameter. Some subclass methods have a "silent" parameter to avoid reporting errors which may be insignificant, typically when closing a device after an error, in which case the close operation may produce other errors if the previous error left the device in an inconsistent state. While those errors should not be displayed as errors, we still display them at debug level.

Parameters
[in]silentIf true, do not report errors, report debug messages instead.
[in]default_severityDefault severity, in non-silent mode (error by default).
Returns
Error when silent is false, Debug otherwise.

◆ handleTimer()

virtual void ts::ReactorHandlerInterface::handleTimer ( Reactor & reactor,
EventId id )
virtualinherited

Handle a timer in a Reactor.

Parameters
[in,out]reactorReactor into which the handler is invoked.
[in]idId of the timer which expires.

◆ handleBroadcastEvent()

virtual void ts::ReactorHandlerInterface::handleBroadcastEvent ( Reactor & reactor,
int error_code,
const ObjectPtr & user_data )
virtualinherited

Handle a broadcast event in a Reactor. A broadcast event is sent to all currently registered events in the reactor.

Parameters
[in,out]reactorReactor into which the handler is invoked.
[in]error_codeApplication-specific error code which was passed to Reactor::signalBroadcastEvent().
[in]user_dataThe user-data shared pointer which was passed to Reactor::signalBroadcastEvent().

◆ handleProcessTermination()

virtual void ts::ReactorHandlerInterface::handleProcessTermination ( Reactor & reactor,
EventId id,
int pid )
virtualinherited

Handle a process termination event in a Reactor. This handler is invoked when the process is no longer there. It is possible that the process was already terminated for a while. It is even possible that the process never really started. There is no portable way to get the process termination status.

Parameters
[in,out]reactorReactor into which the handler is invoked.
[in]idId of the event which was signaled.
[in]pidProcess id of the terminated process.

◆ handleReadReady()

virtual void ts::ReactorHandlerInterface::handleReadReady ( Reactor & reactor,
EventId id,
int error_code )
virtualinherited

Handle a read-ready event in a Reactor. This handler is only invoked in the immediate I/O model.

Parameters
[in,out]reactorReactor into which the handler is invoked.
[in]idId of the event which was signaled.
[in]error_codeSystem-specific error code, zero on success, SYS_ERROR in case of unknown error.

Reimplemented in ts::ReactiveStream.

◆ handleWriteReady()

virtual void ts::ReactorHandlerInterface::handleWriteReady ( Reactor & reactor,
EventId id,
int error_code )
virtualinherited

Handle a write-ready event in a Reactor. This handler is only invoked in the immediate I/O model.

Parameters
[in,out]reactorReactor into which the handler is invoked.
[in]idId of the event which was signaled.
[in]error_codeSystem-specific error code, zero on success, SYS_ERROR in case of unknown error.

Reimplemented in ts::ReactiveStream, and ts::ReactiveTCPConnection.

◆ handleAsynchronousIO()

virtual void ts::ReactorHandlerInterface::handleAsynchronousIO ( Reactor & reactor,
EventId id,
Device::IOSB & iosb,
size_t io_size )
virtualinherited

Handle an asynchronous I/O completion event in a Reactor. This handler is only invoked in the asynchronous I/O model.

Parameters
[in,out]reactorReactor into which the handler is invoked.
[in]idId of the event which was signaled.
[in,out]iosbIOSB structure which was used when the asynchronous I/O was started. A system-specific error code is in iosb, SYS_CANCELED if the I/O was canceled before completion.
[in]io_sizeSize of the I/O in bytes.

Reimplemented in ts::ReactiveStream, and ts::ReactiveTCPConnection.

Member Data Documentation

◆ DEFAULT_MAX_THREADS

size_t ts::ReactiveWorkerPool::DEFAULT_MAX_THREADS = 8
staticconstexpr

Default maximum number of worker threads in the pool for newly created ReactiveWorkerPool instances.


The documentation for this class was generated from the following file:
