ts::FluteFDT Class Reference

Representation of the File Delivery Table (FDT) in the FLUTE protocol. More...

#include <tsFluteFDT.h>

Inheritance diagram for ts::FluteFDT:

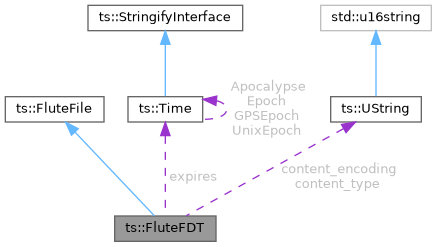

Collaboration diagram for ts::FluteFDT:

Classes
class	File
	Description of one file of the FDT. More...

Public Member Functions
	FluteFDT ()=default
	Default constructor.
	FluteFDT (Report &report, const FluteSessionId &sid, uint32_t instance_id, const ByteBlockPtr &content)
	Constructor.
ByteBlock &	content ()
	Access the content of the file (modifiable version).
const ByteBlock &	content () const
	Access the content of the file (constant version).
bool	isValid () const
	Check if the file is valid (for instance is XML content was successfully parsed).
const UString &	name () const
	Get the name or URN of the file.
const FluteSessionId &	sessionId () const
	Get the session id of the file.
size_t	size () const
	Get the size of the file.
uint64_t	toi () const
	Get the Transport Object Identifier (TOI) of the file.
UString	toText () const
	Get a character string version of the file, if it is a text file.
UString	toXML () const
	Get an indented XML character string version of the file, if it is a text file.
const UString &	type () const
	Get the MIME type of the file.

Public Attributes
bool	complete = false
	FDT is complete, no new data in future FDT instances.
UString	content_encoding {}
	Encoding type.
UString	content_type {}
	MIME type.
uint32_t	encoding_symbol_length = 0
	Length of Encoding Symbol in bytes (FEC Encoding ID 0, 128, 129, 130).
Time	expires {}
	FDT expiration date.
uint32_t	fec_encoding_id = 0
	FEC Encoding ID which was used to parse the structure (not part of the structore).
uint32_t	fec_instance_id = 0
	FEC Instance ID (FEC Encoding ID 128-255).
std::list< File >	files {}
	List of files in this FDT.
uint32_t	instance_id = 0
	FDT instance id.
uint32_t	max_encoding_symbols = 0
	Max number of encoding symbols (FEC Encoding ID 129).
uint32_t	max_source_block_length = 0
	Max number of source symbols per source block (FEC Encoding ID 0, 128, 129, 130).

Protected Member Functions
bool	parseXML (xml::Document &xml_doc, const UChar *expected_root=nullptr, bool ignore_namespace=false)
	Parse the document using XML format.

Protected Attributes
bool	_valid = true
	The validity field can be updated by subclasses.

Detailed Description

Representation of the File Delivery Table (FDT) in the FLUTE protocol.

See also

IETF RFC 3926, section 3.4.2

Constructor & Destructor Documentation

FluteFDT()

ts::FluteFDT::FluteFDT	(	Report &	report,
		const FluteSessionId &	sid,
		uint32_t	instance_id,
		const ByteBlockPtr &	content
	)

Constructor.

Parameters

[in]	report	Where to report errors.
[in]	sid	Session id.
[in]	instance_id	FDT Instance ID.
[in]	content	File content (XML text in UTF-8 representation).

Member Function Documentation

isValid()

bool ts::FluteFile::isValid ( ) const

inlineinherited

Check if the file is valid (for instance is XML content was successfully parsed).

Returns

True if the file is valid. False otherwise.

sessionId()

const FluteSessionId & ts::FluteFile::sessionId ( ) const

inlineinherited

Get the session id of the file.

Returns

A constant reference to the session in the object.

toi()

uint64_t ts::FluteFile::toi ( ) const

inlineinherited

Get the Transport Object Identifier (TOI) of the file.

Returns

The Transport Object Identifier.

name()

const UString & ts::FluteFile::name ( ) const

inlineinherited

Get the name or URN of the file.

Returns

A constant reference to the name in the object.

type()

const UString & ts::FluteFile::type ( ) const

inlineinherited

Get the MIME type of the file.

Returns

A constant reference to the type string in the object.

size()

size_t ts::FluteFile::size ( ) const

inlineinherited

Get the size of the file.

Returns

The size of the file in bytes.

content() [1/2]

ByteBlock & ts::FluteFile::content ( )

inlineinherited

Access the content of the file (modifiable version).

Returns

A reference to the content of the file.

content() [2/2]

const ByteBlock & ts::FluteFile::content ( ) const

inlineinherited

Access the content of the file (constant version).

Returns

A constant reference to the content of the file.

toText()

UString ts::FluteFile::toText ( ) const

inherited

Get a character string version of the file, if it is a text file.

Returns

A string resulting from the conversion of the file content from UTF-8.

toXML()

UString ts::FluteFile::toXML ( ) const

inherited

Get an indented XML character string version of the file, if it is a text file.

Returns

A string resulting from the conversion of the file content from UTF-8 and XML reindentation. If the text is not XML, the original text is returned.

parseXML()

bool ts::FluteFile::parseXML ( xml::Document &  xml_doc, const UChar *  expected_root = nullptr, bool  ignore_namespace = false  )

protectedinherited

Parse the document using XML format.

Parameters

[in,out]	xml_doc	XML document to parse.
[in]	expected_root	Expected root name in XML text. Ignored if null or empty.
[in]	ignore_namespace	Specify if XML namespace is ignored by default in this document.

Returns

True on success, false on error.

---

The documentation for this class was generated from the following file:

• tsFluteFDT.h
