ts::FluteSessionId Class Reference

Representation of a FLUTE session identification. More...

#include <tsFluteSessionId.h>

Inheritance diagram for ts::FluteSessionId:

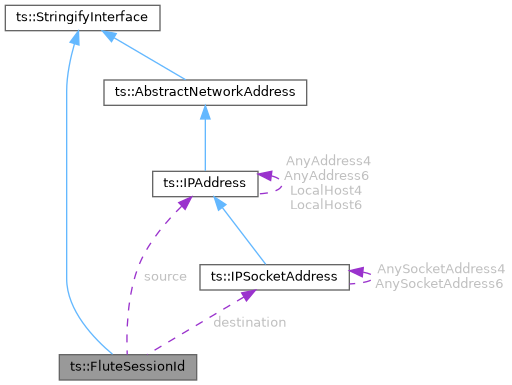

Collaboration diagram for ts::FluteSessionId:

Public Member Functions
	FluteSessionId ()=default
	Default constructor.
	FluteSessionId (const IPAddress &source, const IPSocketAddress &destination, uint64_t tsi)
	Explicit constructor.
void	clear ()
	Clear the content of this object.
bool	match (const FluteSessionId &other) const
	Check if this session id "matches" another one.
bool	nipAnnouncementChannel () const
	Check if this session is in the DVB-NIP Announcement Channel.
bool	operator< (const FluteSessionId &other) const
	Comparison operator for use as index in maps.
bool	parseXML (const xml::Element *element)
	Reinitialize the structure from a XML element.
virtual UString	toString () const override
	Convert to a string object.

Public Attributes
IPSocketAddress	destination {}
	Destination IP address and UDP port.
IPAddress	source {}
	Source IP address.
uint64_t	tsi = INVALID_TSI
	Transport Session Identifier.

Detailed Description

Representation of a FLUTE session identification.

Constructor & Destructor Documentation

FluteSessionId()

ts::FluteSessionId::FluteSessionId	(	const IPAddress &	source,
		const IPSocketAddress &	destination,
		uint64_t	tsi
	)

Explicit constructor.

Parameters

[in]	source	Source IP address.
[in]	destination	Destination IP address and UDP port.
[in]	tsi	Transport Session Identifier.

Member Function Documentation

operator<()

bool ts::FluteSessionId::operator<

(

const FluteSessionId &

other

)

const

Comparison operator for use as index in maps.

Parameters

[in]

other

Another instance to compare.

Returns

True is this instance is logically less that other.

match()

bool ts::FluteSessionId::match

(

const FluteSessionId &

other

)

const

Check if this session id "matches" another one.

Parameters

[in]

other

Another instance to compare.

Returns

False if any addresse, port, or TSI in this and other are both specified and are different. True otherwise.

nipAnnouncementChannel()

bool ts::FluteSessionId::nipAnnouncementChannel

(

)

const

Check if this session is in the DVB-NIP Announcement Channel.

Returns

True if this session is in the DVB-NIP Announcement Channel.

parseXML()

bool ts::FluteSessionId::parseXML

(

const xml::Element *

element

)

Reinitialize the structure from a XML element.

Parameters

[in]

element

Root XML element to analyze.

Returns

True on success, false on error.

toString()

virtual UString ts::FluteSessionId::toString ( ) const

overridevirtual

Convert to a string object.

Returns

This object, converted as a string.

Implements ts::StringifyInterface.

---

The documentation for this class was generated from the following file:

• tsFluteSessionId.h
