ts::BIOPMessage Class Reference

BIOP Message (polymorphic base). More...

#include <tsDSMCCBIOPMessage.h>

Inheritance diagram for ts::BIOPMessage:

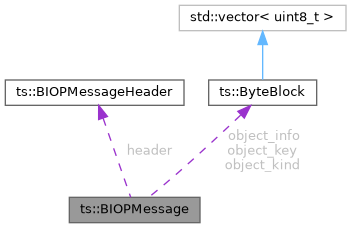

Collaboration diagram for ts::BIOPMessage:

Public Member Functions
	BIOPMessage ()=default
	Default constructor.
virtual	~BIOPMessage ()=default
	Virtual destructor.
virtual const std::vector< BIOPBinding > *	bindingList () const
	Bindings carried by this message, if any.
virtual bool	fromXML (DuckContext &duck, const xml::Element *element)
	This method decodes an XML BIOPMessage.
std::string	kindTag () const
	Get the object kind as a trimmed string (without the trailing null, if any).
virtual void	toXML (DuckContext &duck, xml::Element *parent) const
	This method converts a BIOPMessage to XML.

Static Public Member Functions
static std::unique_ptr< BIOPMessage >	FromXML (DuckContext &duck, const xml::Element *element)
	Parse a BIOP message from an XML element.
static std::unique_ptr< BIOPMessage >	Parse (PSIBuffer &buf)
	Parse one BIOP message from a buffer.

Public Attributes
BIOPMessageHeader	header {}
	BIOP message header.
ByteBlock	object_info {}
	Object info bytes (kind-specific; opaque at this level).
ByteBlock	object_key {}
	Object key bytes.
ByteBlock	object_kind {}
	Object kind bytes on the wire (e.g. 'f','i','l',0). Use kindTag() for the trimmed tag.
std::vector< BIOPServiceContext >	service_contexts {}
	Service context list.

Protected Member Functions
virtual bool	deserializeBody (PSIBuffer &buf)=0
	Deserialize the subclass-specific message body.
virtual bool	fromXMLBody (DuckContext &duck, const xml::Element *msg_element)=0
	Deserialize the subclass-specific body from XML.
virtual void	toXMLBody (DuckContext &duck, xml::Element *msg_element) const =0
	Serialize the subclass-specific body to XML.

Static Protected Member Functions
static std::unique_ptr< BIOPMessage >	CreateForKind (const std::string &tag)
	Construct a concrete BIOPMessage subclass for a given object_kind tag.

Detailed Description

BIOP Message (polymorphic base).

Parses the 8-byte BIOP header plus the common fields shared by all in-carousel BIOP messages (message_size, objectKey, objectKind, objectInfo, serviceContextList, messageBody_length). The body is deserialized by concrete subclasses.

See also

ISO/IEC 13818-6 section 8

ETSI TR 101 202 section 4.4

Member Function Documentation

kindTag()

std::string ts::BIOPMessage::kindTag

(

)

const

Get the object kind as a trimmed string (without the trailing null, if any).

Returns

Trimmed kind string.

bindingList()

virtual const std::vector< BIOPBinding > * ts::BIOPMessage::bindingList ( ) const

inlinevirtual

Bindings carried by this message, if any.

Returns

Pointer to the bindings vector for Directory / ServiceGateway messages, nullptr for kinds that don't carry bindings.

Reimplemented in ts::BIOPBindingListMessage.

Parse()

static std::unique_ptr< BIOPMessage > ts::BIOPMessage::Parse ( PSIBuffer &  buf )

static

Parse one BIOP message from a buffer.

Dispatches to the concrete subclass based on object_kind.

Parameters

[in,out]

buf

Deserialization buffer.

Returns

Parsed message, or nullptr on error or unsupported kind.

toXML()

virtual void ts::BIOPMessage::toXML ( DuckContext &  duck, xml::Element *  parent  ) const

virtual

This method converts a BIOPMessage to XML.

Parameters

[in,out]	duck	TSDuck execution context.
[in,out]	parent	The parent node for the XML element.

fromXML()

virtual bool ts::BIOPMessage::fromXML ( DuckContext &  duck, const xml::Element *  element  )

virtual

This method decodes an XML BIOPMessage.

Parameters

[in,out]	duck	TSDuck execution context.
[in]	element	The XML element containing the message.

Returns

True on success, false on error.

FromXML()

static std::unique_ptr< BIOPMessage > ts::BIOPMessage::FromXML ( DuckContext &  duck, const xml::Element *  element  )

static

Parse a BIOP message from an XML element.

Dispatches to the concrete subclass based on the object_kind attribute.

Parameters

[in,out]	duck	TSDuck execution context.
[in]	element	The XML element to parse.

Returns

Parsed message, or nullptr on error or unsupported kind.

CreateForKind()

static std::unique_ptr< BIOPMessage > ts::BIOPMessage::CreateForKind ( const std::string &  tag )

staticprotected

Construct a concrete BIOPMessage subclass for a given object_kind tag.

Parameters

[in]

tag

Trimmed object_kind string (e.g. "fil", "dir", "srg").

Returns

A new, empty subclass instance, or nullptr if the kind is unsupported.

deserializeBody()

virtual bool ts::BIOPMessage::deserializeBody ( PSIBuffer &  buf )

protectedpure virtual

Deserialize the subclass-specific message body.

Parameters

[in,out]

buf

Deserialization buffer. Exactly the body bytes are available.

Returns

True on success.

Implemented in ts::BIOPFileMessage, and ts::BIOPBindingListMessage.

toXMLBody()

virtual void ts::BIOPMessage::toXMLBody ( DuckContext &  duck, xml::Element *  msg_element  ) const

protectedpure virtual

Serialize the subclass-specific body to XML.

Parameters

[in,out]	duck	TSDuck execution context.
[in,out]	msg_element	The <BIOP_message> XML element to append body children to.

Implemented in ts::BIOPFileMessage, and ts::BIOPBindingListMessage.

fromXMLBody()

virtual bool ts::BIOPMessage::fromXMLBody ( DuckContext &  duck, const xml::Element *  msg_element  )

protectedpure virtual

Deserialize the subclass-specific body from XML.

Parameters

[in,out]	duck	TSDuck execution context.
[in]	msg_element	The <BIOP_message> XML element containing the body.

Returns

True on success.

Implemented in ts::BIOPFileMessage, and ts::BIOPBindingListMessage.

---

The documentation for this class was generated from the following file:

• tsDSMCCBIOPMessage.h
