ts::mcast::FluteFDT Class Reference

#include <tsmcastFluteFDT.h>

Inheritance diagram for ts::mcast::FluteFDT:

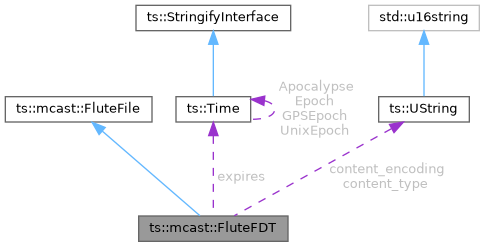

Collaboration diagram for ts::mcast::FluteFDT:

Classes
class	File

Public Member Functions
	FluteFDT ()=default
	FluteFDT (Report &report, const FluteSessionId &sid, uint32_t instance_id, const ByteBlockPtr &content)
ByteBlock &	content ()
const ByteBlock &	content () const
const ByteBlockPtr	contentPointer () const
const UString &	fullType () const
bool	isValid () const
const UString &	name () const
const FluteSessionId &	sessionId () const
size_t	size () const
uint64_t	toi () const
UString	toText () const
UString	toXML () const
const UString &	type () const

Public Attributes
bool	complete = false
	FDT is complete, no new data in future FDT instances.
UString	content_encoding {}
	Encoding type.
UString	content_type {}
	MIME type.
uint32_t	encoding_symbol_length = 0
	Length of Encoding Symbol in bytes (FEC Encoding ID 0, 128, 129, 130).
Time	expires {}
	FDT expiration date.
uint32_t	fec_encoding_id = 0
	FEC Encoding ID which was used to parse the structure (not part of the structore).
uint32_t	fec_instance_id = 0
	FEC Instance ID (FEC Encoding ID 128-255).
std::list< File >	files {}
	List of files in this FDT.
uint32_t	instance_id = 0
	FDT instance id.
uint32_t	max_encoding_symbols = 0
	Max number of encoding symbols (FEC Encoding ID 129).
uint32_t	max_source_block_length = 0
	Max number of source symbols per source block (FEC Encoding ID 0, 128, 129, 130).

Protected Member Functions
bool	parseXML (xml::Document &xml_doc, const UChar *expected_root=nullptr, bool ignore_namespace=false)

Protected Attributes
bool	_valid = true
	The validity field can be updated by subclasses.

Detailed Description

Representation of the File Delivery Table (FDT) in the FLUTE protocol.

See also

IETF RFC 3926, section 3.4.2

Constructor & Destructor Documentation

FluteFDT() [1/2]

ts::mcast::FluteFDT::FluteFDT ( )

default

Default constructor.

FluteFDT() [2/2]

ts::mcast::FluteFDT::FluteFDT	(	Report &	report,
		const FluteSessionId &	sid,
		uint32_t	instance_id,
		const ByteBlockPtr &	content )

Constructor.

Parameters

[in]	report	Where to report errors.
[in]	sid	Session id.
[in]	instance_id	FDT Instance ID.
[in]	content	File content (XML text in UTF-8 representation).

Member Function Documentation

isValid()

bool ts::mcast::FluteFile::isValid ( ) const

inlineinherited

Check if the file is valid (for instance is XML content was successfully parsed).

Returns

True if the file is valid. False otherwise.

sessionId()

const FluteSessionId & ts::mcast::FluteFile::sessionId ( ) const

inlineinherited

Get the session id of the file.

Returns

A constant reference to the session in the object.

toi()

uint64_t ts::mcast::FluteFile::toi ( ) const

inlineinherited

Get the Transport Object Identifier (TOI) of the file.

Returns

The Transport Object Identifier.

name()

const UString & ts::mcast::FluteFile::name ( ) const

inlineinherited

Get the name or URN of the file.

Returns

A constant reference to the name in the object.

type()

const UString & ts::mcast::FluteFile::type ( ) const

inlineinherited

Get the base MIME type of the file, excluding qualification such as "charset=utf-8".

Returns

A constant reference to the type string in the object.

fullType()

const UString & ts::mcast::FluteFile::fullType ( ) const

inlineinherited

Get the original full MIME type of the file.

Returns

A constant reference to the type string in the object.

size()

size_t ts::mcast::FluteFile::size ( ) const

inlineinherited

Get the size of the file.

Returns

The size of the file in bytes.

content() [1/2]

ByteBlock & ts::mcast::FluteFile::content ( )

inlineinherited

Access the content of the file (modifiable version).

Returns

A reference to the content of the file.

content() [2/2]

const ByteBlock & ts::mcast::FluteFile::content ( ) const

inlineinherited

Access the content of the file (constant version).

Returns

A constant reference to the content of the file.

contentPointer()

const ByteBlockPtr ts::mcast::FluteFile::contentPointer ( ) const

inlineinherited

Get a shared pointer (std::shared_ptr) to the content of the file. This allow to keep the content for some time, even after the FluteFile object is deleted.

Returns

A shared pointer to the content of the file.

toText()

UString ts::mcast::FluteFile::toText ( ) const

inherited

Get a character string version of the file, if it is a text file.

Returns

A string resulting from the conversion of the file content from UTF-8.

toXML()

UString ts::mcast::FluteFile::toXML ( ) const

inherited

Get an indented XML character string version of the file, if it is a text file.

Returns

A string resulting from the conversion of the file content from UTF-8 and XML reindentation. If the text is not XML, the original text is returned.

parseXML()

bool ts::mcast::FluteFile::parseXML ( xml::Document & xml_doc, const UChar * expected_root = nullptr, bool ignore_namespace = false )

protectedinherited

Parse the document using XML format.

Parameters

[in,out]	xml_doc	XML document to parse.
[in]	expected_root	Expected root name in XML text. Ignored if null or empty.
[in]	ignore_namespace	Specify if XML namespace is ignored by default in this document.

Returns

True on success, false on error.

---

The documentation for this class was generated from the following file:

• tsmcastFluteFDT.h
