ts::LCTHeader Class Reference

Representation of a Layered Coding Transport (LCT) header. More...

#include <tsLCTHeader.h>

Inheritance diagram for ts::LCTHeader:

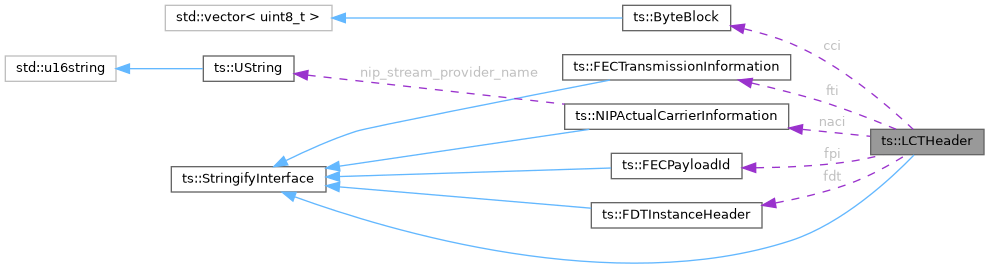

Collaboration diagram for ts::LCTHeader:

Public Member Functions
	LCTHeader ()=default
	Default constructor.
void	clear ()
	Clear the content of a binary LCT header.
bool	deserialize (const uint8_t *&addr, size_t &size)
	Deserialize a binary LCT header.
virtual UString	toString () const override
	Convert to a string object.

Public Attributes
ByteBlock	cci {}
	Congestion control information.
std::optional< uint8_t >	cenc {}
	Optional content encoding algorithm from header HET_CENC.
bool	close_object = false
	Close Object flag.
bool	close_session = false
	Close Session flag.
uint8_t	codepoint = 0
	Codepoint identifier. Contains the FEC Encoding ID in FLUTE (RFC 3926, 5.1).
std::map< uint8_t, ByteBlock >	ext {}
	Header extensions, indexed by type (HET).
FDTInstanceHeader	fdt {}
	Optional FDT instance from header HET_FDT.
FECPayloadId	fpi {}
	FEC Payload ID, following the LCT header.
FECTransmissionInformation	fti {}
	Optional FEC transmission information from header HET_FTI.
uint8_t	lct_version = 0
	LCT protocol version (4 bits).
NIPActualCarrierInformation	naci {}
	Optional DVB-NIP carrier information from header HET_NACI.
uint8_t	psi = 0
	Protocol-Specific Indication (2 bits).
std::optional< Time >	time {}
	Optional sender current time from header HET_TIME.
uint64_t	toi = 0
	Transport Object Identifier (low 64 bits).
uint64_t	toi_high = 0
	Transport Object Identifier (high 64 bits).
size_t	toi_length = 0
	Length in bytes of TOI field.
uint64_t	tsi = 0
	Transport Session Identifier.
size_t	tsi_length = 0
	Length in bytes of TSI field.
bool	valid = false
	The LCT Header was successfully parsed.

Detailed Description

Representation of a Layered Coding Transport (LCT) header.

By extension, for use in context of FLUTE and DVB-NIP, the corresponding optional headers are added.

See also

IETF RFC 5651

Member Function Documentation

deserialize()

bool ts::LCTHeader::deserialize	(	const uint8_t *&	addr,
		size_t &	size
	)

Deserialize a binary LCT header.

Parameters

[in,out]	addr	Address of binary area. Updated to point after LCT header.
[in,out]	size	Size of binary area. Updated with remaining size after deserializing the LCT header.

Returns

True on success, false on error. Same as valid field.

toString()

virtual UString ts::LCTHeader::toString ( ) const

overridevirtual

Convert to a string object.

Returns

This object, converted as a string.

Implements ts::StringifyInterface.

---

The documentation for this class was generated from the following file:

• tsLCTHeader.h
