ts::NIPActualCarrierInformation Class Reference

Representation of the DVB-NIP Actual Carrier Information from LCT header extension HET_NACI. More...

#include <tsNIPActualCarrierInformation.h>

Inheritance diagram for ts::NIPActualCarrierInformation:

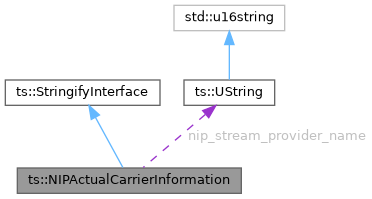

Collaboration diagram for ts::NIPActualCarrierInformation:

Public Member Functions
	NIPActualCarrierInformation ()=default
	Default constructor.
void	clear ()
	Clear the content of a structure.
bool	deserialize (const LCTHeader &lct)
	Deserialize the structure from a HET_NACI LCT header extension.
bool	deserialize (const uint8_t *addr, size_t size)
	Deserialize the structure from a binary area.
bool	operator< (const NIPActualCarrierInformation &other) const
	Comparison operator for use as index in maps.
virtual UString	toString () const override
	Convert to a string object.

Public Attributes
uint16_t	nip_carrier_id = 0
	NIPCarrierID.
uint16_t	nip_link_id = 0
	NIPLinkID.
uint16_t	nip_network_id = 0
	NIPNetworkID.
uint16_t	nip_service_id = 0
	NIPServiceID.
UString	nip_stream_provider_name {}
	NIPStreamProviderName.
bool	valid = false
	The informatio was successfully parsed.

Detailed Description

Representation of the DVB-NIP Actual Carrier Information from LCT header extension HET_NACI.

See also

ETSI TS 103 876, section 8.7.3

Member Function Documentation

deserialize() [1/2]

bool ts::NIPActualCarrierInformation::deserialize	(	const uint8_t *	addr,
		size_t	size
	)

Deserialize the structure from a binary area.

Parameters

[in]	addr	Address of binary area.
[in]	size	Size of binary area.

Returns

True on success, false on error. Same as valid field.

deserialize() [2/2]

bool ts::NIPActualCarrierInformation::deserialize

(

const LCTHeader &

lct

)

Deserialize the structure from a HET_NACI LCT header extension.

Parameters

[in]

lct

LCT header.

Returns

True on success, false on error or not present in LCT header. Same as valid field.

operator<()

bool ts::NIPActualCarrierInformation::operator<

(

const NIPActualCarrierInformation &

other

)

const

Comparison operator for use as index in maps.

Parameters

[in]

other

Another instance to compare.

Returns

True is this instance is logically less that other.

toString()

virtual UString ts::NIPActualCarrierInformation::toString ( ) const

overridevirtual

Convert to a string object.

Returns

This object, converted as a string.

Implements ts::StringifyInterface.

---

The documentation for this class was generated from the following file:

• tsNIPActualCarrierInformation.h
