ts::mcast::BaseMulticastTransportSession Class Reference

#include <tsmcastBaseMulticastTransportSession.h>

Inheritance diagram for ts::mcast::BaseMulticastTransportSession:

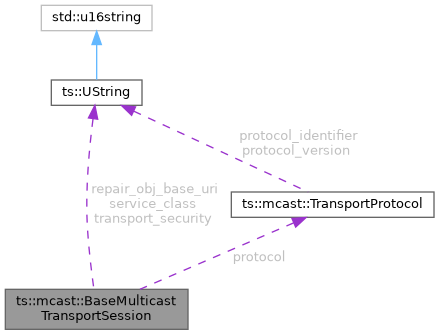

Collaboration diagram for ts::mcast::BaseMulticastTransportSession:

Classes
class	WeightedURIType

Public Member Functions
	BaseMulticastTransportSession ()=default
void	clear ()
bool	parseXML (const xml::Element *element, bool strict)

Public Attributes
uint32_t	bitrate_average = 0
	attribute average in <BitRate>.
uint32_t	bitrate_maximum = 0
	attribute maximum in <BitRate>.
std::list< FluteSessionId >	endpoints {}
	elements <EndpointAddress>.
std::list< ForwardErrorCorrectionParameters >	fec {}
	elements <ForwardErrorCorrectionParameters>.
TransportProtocol	protocol {}
	element <TransportProtocol>.
std::list< WeightedURIType >	repair_base_url {}
	elements <BaseURL> in <UnicastRepairParameters>.
cn::milliseconds	repair_fixed_backoff {}
	attribute fixedBackOffPeriod in <UnicastRepairParameters>.
UString	repair_obj_base_uri {}
	attribute transportObjectBaseURI in <UnicastRepairParameters>.
cn::milliseconds	repair_rand_backoff {}
	attribute randomBackOffPeriod in <UnicastRepairParameters>.
cn::milliseconds	repair_recv_timeout {}
	attribute transportObjectReceptionTimeout in <UnicastRepairParameters>.
UString	service_class {}
	attribute serviceClass.
UString	transport_security {}
	attribute transportSecurity.

Detailed Description

Representation of a BaseMulticastTransportSession (Multicast ABR). It serves as base type for substructures which are used in several XML tables.

See also

ETSI TS 103 769

Constructor & Destructor Documentation

BaseMulticastTransportSession()

ts::mcast::BaseMulticastTransportSession::BaseMulticastTransportSession ( )

default

Default constructor.

Member Function Documentation

clear()

void ts::mcast::BaseMulticastTransportSession::clear

(

)

Clear the content of this object.

parseXML()

bool ts::mcast::BaseMulticastTransportSession::parseXML	(	const xml::Element *	element,
		bool	strict )

Reinitialize the structure from a XML element.

Parameters

[in]	element	Root XML element to analyze.
[in]	strict	Strict XML parsing, do not tolerate missing mandatory elements or attributes.

Returns

True on success, false on error.

---

The documentation for this class was generated from the following file:

• tsmcastBaseMulticastTransportSession.h
