#include <tsmcastGatewayConfigurationTransportSession.h>

Inheritance diagram for ts::mcast::GatewayConfigurationTransportSession:

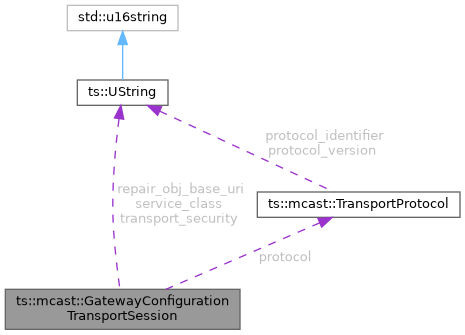

Collaboration diagram for ts::mcast::GatewayConfigurationTransportSession:

[legend]

Classes
class	CarouselResourceLocatorType
class	ReferencingCarouselMediaPresentationResourceType

Public Member Functions
	GatewayConfigurationTransportSession ()=default
void	clear ()
bool	parseXML (const xml::Element *element, bool strict)

Public Attributes
uint32_t	bitrate_average = 0
	attribute average in <BitRate>.
uint32_t	bitrate_maximum = 0
	attribute maximum in <BitRate>.
uint32_t	carousel_content_size = 0
	attribute aggregateContentSize in <ObjectCarousel>.
std::list< ReferencingCarouselMediaPresentationResourceType >	carousel_manifests {}
	all <PresentationManifests> in <ObjectCarousel>.
std::list< ReferencingCarouselMediaPresentationResourceType >	carousel_segment {}
	all <InitSegments> in <ObjectCarousel>.
uint32_t	carousel_transport_size = 0
	attribute aggregateTransportSize in <ObjectCarousel>.
std::list< FluteSessionId >	endpoints {}
	elements <EndpointAddress>.
std::list< ForwardErrorCorrectionParameters >	fec {}
	elements <ForwardErrorCorrectionParameters>.
UStringToUStringMap	macros {}
	map of <GatewayConfigurationMacro>, indexed by attribute key.
TransportProtocol	protocol {}
	element <TransportProtocol>.
std::list< WeightedURIType >	repair_base_url {}
	elements <BaseURL> in <UnicastRepairParameters>.
cn::milliseconds	repair_fixed_backoff {}
	attribute fixedBackOffPeriod in <UnicastRepairParameters>.
UString	repair_obj_base_uri {}
	attribute transportObjectBaseURI in <UnicastRepairParameters>.
cn::milliseconds	repair_rand_backoff {}
	attribute randomBackOffPeriod in <UnicastRepairParameters>.
cn::milliseconds	repair_recv_timeout {}
	attribute transportObjectReceptionTimeout in <UnicastRepairParameters>.
std::list< CarouselResourceLocatorType >	resource_locator {}
	all <ResourceLocator> in <ObjectCarousel>.
UString	service_class {}
	attribute serviceClass.
UStringList	tags {}
	attribute tags
UString	transport_security {}
	attribute transportSecurity.

Detailed Description

Representation of a MulticastGatewayConfigurationTransportSession (Multicast ABR). This substructure is used in several XML tables such as MulticastGatewayConfiguration and MulticastServerConfiguration.

See also: ETSI TS 103 769, section 10.2.5

Constructor & Destructor Documentation

◆ GatewayConfigurationTransportSession()

ts::mcast::GatewayConfigurationTransportSession::GatewayConfigurationTransportSession ( )

default

Default constructor.

Member Function Documentation

◆ clear()

void ts::mcast::GatewayConfigurationTransportSession::clear ( )

Clear the content of this object.

◆ parseXML()

bool ts::mcast::GatewayConfigurationTransportSession::parseXML	(	const xml::Element *	element,
		bool	strict )

Reinitialize the structure from a XML element.

Parameters

[in]	element	Root XML element to analyze.
[in]	strict	Strict XML parsing, do not tolerate missing mandatory elements or attributes.

Returns: True on success, false on error.

The documentation for this class was generated from the following file:

tsmcastGatewayConfigurationTransportSession.h
