ts::DSMCCLiteComponent Class Reference

Representation of LiteComponent structure (BIOP::Object Location, DSM::ConnBinder) More...

#include <tsDSMCCLiteComponent.h>

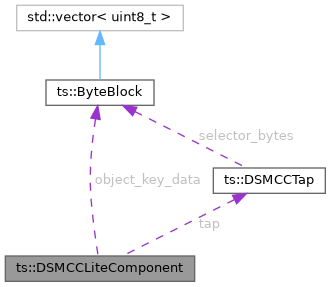

Collaboration diagram for ts::DSMCCLiteComponent:

Public Member Functions
	DSMCCLiteComponent ()=default
	Default constructor.
void	deserialize (PSIBuffer &buf)
	Deserialize the LiteComponent structure.
bool	fromXML (DuckContext &duck, const xml::Element *element)
	This method decodes an XML LiteComponent.
void	serialize (PSIBuffer &buf) const
	Serialize the LiteComponent structure.
void	toXML (DuckContext &duck, xml::Element *parent) const
	This method converts a LiteComponent to XML.

Static Public Member Functions
static void	Display (TablesDisplay &display, PSIBuffer &buf, const UString &margin)
	Display the LiteComponent structure.

Public Attributes
uint32_t	carousel_id = 0
	The carouselId field provides a context for the moduleId field.
std::optional< ByteBlock >	component_data {}
	Optional component data, for UnknownComponent.
uint32_t	component_id_tag = 0
	Component idenfitier tag (eg. TAG_ObjectLocation, TAG_ConnBinder).
uint16_t	module_id = 0
	Identifies the module in which the object is conveyed within the carousel.
ByteBlock	object_key_data {}
	Identifies the object within the module in which it is broadcast.
DSMCCTap	tap {}
	Tap structure.
uint8_t	version_major = 0x01
	Fixed, BIOP protocol major version 1.
uint8_t	version_minor = 0x00
	Fixed, BIOP protocol minor version 0.

Detailed Description

Representation of LiteComponent structure (BIOP::Object Location, DSM::ConnBinder)

See also

ISO/IEC 13818-6

ETSI TR 101 202 V1.2.1 (2003-01), Table 4.5

Member Function Documentation

serialize()

void ts::DSMCCLiteComponent::serialize

(

PSIBuffer &

buf

)

const

Serialize the LiteComponent structure.

Parameters

[in,out]

buf

Serialization buffer.

deserialize()

void ts::DSMCCLiteComponent::deserialize

(

PSIBuffer &

buf

)

Deserialize the LiteComponent structure.

Parameters

[in,out]

buf

Deserialization buffer.

Display()

static void ts::DSMCCLiteComponent::Display ( TablesDisplay &  display, PSIBuffer &  buf, const UString &  margin  )

static

Display the LiteComponent structure.

Parameters

[in,out]	display	Display engine.
[in,out]	buf	A PSIBuffer over the LiteComponent.
[in]	margin	Left margin content.

toXML()

void ts::DSMCCLiteComponent::toXML	(	DuckContext &	duck,
		xml::Element *	parent
	)		const

This method converts a LiteComponent to XML.

Parameters

[in,out]	duck	TSDuck execution context.
[in,out]	parent	The parent node for the XML LiteComponent.

fromXML()

bool ts::DSMCCLiteComponent::fromXML	(	DuckContext &	duck,
		const xml::Element *	element
	)

This method decodes an XML LiteComponent.

Parameters

[in,out]	duck	TSDuck execution context.
[in]	element	The XML element containing the LiteComponent.

Returns

True on success, false on error.

---

The documentation for this class was generated from the following file:

• tsDSMCCLiteComponent.h
