Base class for all kinds of binary data structures with an optional length field. More...

#include <tsDataBlock.h>

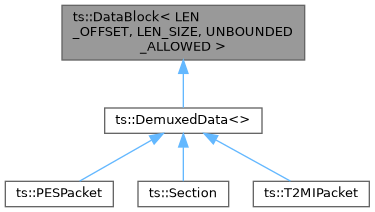

Inheritance diagram for ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >:

[legend]

Public Member Functions
	DataBlock ()=default
	Default constructor.

	DataBlock (const ByteBlock &content)
	Constructor from full binary content.

	DataBlock (const ByteBlockPtr &content_ptr, ShareMode mode)
	Constructor from full binary content.

	DataBlock (const DataBlock &other, ShareMode mode)
	Copy constructor.

	DataBlock (const void *content, size_t content_size)
	Constructor from full binary content.

	DataBlock (DataBlock &&other)
	Move constructor.

virtual	~DataBlock ()
	Virtual destructor.

virtual void	clear ()
	Clear data content.

virtual const uint8_t *	content () const
	Access to the full binary content of the data.

DataBlock &	copy (const DataBlock &other)
	Duplication.

virtual bool	isValid () const
	Check if the data structure has valid content.

bool	matchContent (const ByteBlock &pattern, const ByteBlock &mask=ByteBlock()) const
	Check if the start of the data matches a given pattern.

DataBlock &	operator= (const DataBlock &other)
	Assignment operator.

DataBlock &	operator= (DataBlock &&other) noexcept
	Move assignment operator.

bool	operator== (const DataBlock &other) const
	Equality operator.

size_t	rawDataSize () const
	Size of the complete binary raw data containing the logical structure.

void	reload (const ByteBlock &content)
	Reload from full binary content.

void	reload (const ByteBlockPtr &content_ptr)
	Reload from full binary content.

void	reload (const void *content, size_t content_size)
	Reload from full binary content.

virtual size_t	size () const
	Size of the logical binary content of the data.

Static Public Member Functions
static size_t	GetLengthField (const void *content, size_t content_size)
	Static method to extract the content of the length field.

static bool	ValidateLengthField (const void *content, size_t content_size, bool allow_extra_data)
	Static method to validate the content of the length field.

Static Public Attributes
static constexpr size_t	AFTER_LEN_BYTE_OFFSET = LEN_SIZE == 0 ? 0 : (LEN_OFFSET + LEN_SIZE + 7) / 8
	Offset in bytes of the next byte after the length field.

static constexpr size_t	LEN_BIT_OFFSET = LEN_SIZE == 0 ? 0 : LEN_OFFSET
	Offset in bits of the length field from the beginning of the structure.

static constexpr size_t	LEN_BIT_SIZE = LEN_SIZE
	Size in bits of the length field.

static constexpr bool	UNBOUNDED_IS_ALLOWED = UNBOUNDED_ALLOWED
	If true, the length field allows zero as an "unbounded" value.

Protected Member Functions
void	rwAppend (const void *data, size_t dsize)
	Append raw data to the full binary content of the data for subclasses.

uint8_t *	rwContent ()
	Read/write access to the full binary content of the data for subclasses.

void	rwResize (size_t s)
	Resize the full binary content of the data for subclasses.

Detailed Description

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>
class ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >

Base class for all kinds of binary data structures with an optional length field.

Template Parameters

LEN_OFFSET	Offset in bits of the length field from the beginning of the structure.
LEN_SIZE	Size in bits of the length field. If zero, there is no length field.
UNBOUNDED_ALLOWED	If true, the length field allows zero as an "unbounded" value, meaning that the size is unchecked and solely defined by the binary size of the structure.

The binary data of the structure is hidden inside the class. It is implemented as a shared pointer to a ByteBlock. The corresponding data block can be shared or copied between instances, reducing the number of memory copies.

When defined, the length field shall contain the number of bytes, immediately after that length field.

Constructor & Destructor Documentation

◆ DataBlock() [1/5]

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::DataBlock	(	const DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED > &	other,
		ShareMode	mode
	)

Copy constructor.

Parameters

[in]	other	Another instance to copy.
[in]	mode	The data are either shared (ShareMode::SHARE) between the two instances or duplicated (ShareMode::COPY).

◆ DataBlock() [2/5]

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::DataBlock ( DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED > && other )

inline

Move constructor.

Parameters

[in,out] other Another instance to move.

◆ DataBlock() [3/5]

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::DataBlock	(	const void *	content,
		size_t	content_size
	)

Constructor from full binary content.

Parameters

[in]	content	Address of the binary data.
[in]	content_size	Size in bytes of the data.

◆ DataBlock() [4/5]

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::DataBlock ( const ByteBlock & content )

Constructor from full binary content.

Parameters

[in] content Binary packet data. The content is copied into a new byte block.

◆ DataBlock() [5/5]

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::DataBlock	(	const ByteBlockPtr &	content_ptr,
		ShareMode	mode
	)

Constructor from full binary content.

Parameters

[in]	content_ptr	Safe pointer to the binary data.
[in]	mode	The data are either shared (ShareMode::SHARE) between the descriptor and content_ptr or duplicated (ShareMode::COPY). If shared, do not modify the referenced ByteBlock from outside the DataBlock.

Member Function Documentation

◆ isValid()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

virtual bool ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::isValid ( ) const

virtual

Check if the data structure has valid content.

The base implementation only checks that the binary data are allocated. The various constructors or methods which replace the binary content already check the validity of the length field, when there is one. Subclasses may override this method with additional checks.

Returns: True if the descriptor has valid content.

Reimplemented in ts::PESPacket, ts::Section, and ts::T2MIPacket.

◆ reload() [1/3]

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

void ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::reload	(	const void *	content,
		size_t	content_size
	)

Reload from full binary content.

Parameters

[in]	content	Address of the binary packet data.
[in]	content_size	Size in bytes of the packet.

◆ reload() [2/3]

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

void ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::reload ( const ByteBlock & content )

Reload from full binary content.

Parameters

[in] content Binary packet data. The content is copied into a new byte block.

◆ reload() [3/3]

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

void ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::reload ( const ByteBlockPtr & content_ptr )

Reload from full binary content.

Parameters

[in] content_ptr Safe pointer to the binary packet data. The content is referenced, and thus shared. Do not modify the referenced ByteBlock from outside the DataBlock.

◆ clear()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

virtual void ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::clear ( )

virtual

Clear data content.

Reimplemented in ts::DemuxedData, ts::PESPacket, ts::Section, and ts::T2MIPacket.

◆ operator=() [1/2]

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

DataBlock & ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::operator= ( const DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED > & other )

Assignment operator.

The packets are referenced, and thus shared between the two packet objects.

Parameters

[in] other Other packet to assign to this object.

Returns: A reference to this object.

◆ operator=() [2/2]

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

DataBlock & ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::operator= ( DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED > && other )

noexcept

Move assignment operator.

Parameters

[in,out] other Other packet to assign to this object.

Returns: A reference to this object.

◆ copy()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

DataBlock & ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::copy ( const DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED > & other )

Duplication.

Similar to assignment but the data are duplicated.

Parameters

[in] other Other data to duplicate into this object.

Returns: A reference to this object.

◆ operator==()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

bool ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::operator== ( const DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED > & other ) const

Equality operator.

The source PID's are ignored, only the data contents are compared.

Parameters

[in] other Other packet to compare.

Returns: True if the two packets are identical. False otherwise.

◆ content()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

virtual const uint8_t * ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::content ( ) const

virtual

Access to the full binary content of the data.

Do not modify content.

Returns: Address of the full binary content of the data. May be invalidated after modification.

◆ size()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

virtual size_t ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::size ( ) const

virtual

Size of the logical binary content of the data.

For subclasses of DataBlock, this is the logical size of the data structure inside the DataBlock blob.

Returns: Size of the logical binary content of the data.

See also: rawDataSize()

Reimplemented in ts::PESPacket.

◆ rawDataSize()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

size_t ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::rawDataSize ( ) const

inline

Size of the complete binary raw data containing the logical structure.

Non-virtual method, always return the same result.

Returns: Size of the complete binary raw data.

See also: size()

◆ matchContent()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

bool ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::matchContent	(	const ByteBlock &	pattern,
		const ByteBlock &	mask = `ByteBlock()`
	)		const

Check if the start of the data matches a given pattern.

Parameters

[in]	pattern	A byte block to compare with the start of the data.
[in]	mask	Optional mask to select meaningful bits in pattern.

Returns: Size of the binary content of the data.

◆ GetLengthField()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

static size_t ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::GetLengthField	(	const void *	content,
		size_t	content_size
	)

static

Static method to extract the content of the length field.

Parameters

[in]	content	Address of the binary data. Can be the null pointer.
[in]	content_size	Size in bytes of the data.

Returns: The extracted length field or NPOS if the data structure does not contain a length field or if the length is "unbounded" (when allowed).

◆ ValidateLengthField()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

static bool ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::ValidateLengthField	(	const void *	content,
		size_t	content_size,
		bool	allow_extra_data
	)

static

Static method to validate the content of the length field.

Parameters

[in]	content	Address of the binary data. Can be the null pointer.
[in]	content_size	Size in bytes of the data.
[in]	allow_extra_data	If true, additional data are allowed after the declared length.

Returns: True if the length field is valid, or the length field does not exist, or the length field is "unbounded" (when allowed).

◆ rwContent()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

uint8_t * ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::rwContent ( )

inlineprotected

Read/write access to the full binary content of the data for subclasses.

Returns: Address of the full binary content of the data.

◆ rwResize()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

void ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::rwResize ( size_t s )

protected

Resize the full binary content of the data for subclasses.

Parameters

[in] s New size in bytes of the full binary content of the data.

◆ rwAppend()

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

void ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::rwAppend	(	const void *	data,
		size_t	dsize
	)

protected

Append raw data to the full binary content of the data for subclasses.

Parameters

[in]	data	Address of the new area to append.
[in]	dsize	Size of the area to append.

Member Data Documentation

◆ LEN_BIT_SIZE

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

constexpr size_t ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::LEN_BIT_SIZE = LEN_SIZE

staticconstexpr

Size in bits of the length field.

If zero, there is no length field.

◆ AFTER_LEN_BYTE_OFFSET

template<const size_t LEN_OFFSET = 0, const size_t LEN_SIZE = 0, const bool UNBOUNDED_ALLOWED = false>

constexpr size_t ts::DataBlock< LEN_OFFSET, LEN_SIZE, UNBOUNDED_ALLOWED >::AFTER_LEN_BYTE_OFFSET = LEN_SIZE == 0 ? 0 : (LEN_OFFSET + LEN_SIZE + 7) / 8

staticconstexpr

Offset in bytes of the next byte after the length field.

Zero if there is no length field.

The documentation for this class was generated from the following file:

tsDataBlock.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ DataBlock() [1/5]

◆ DataBlock() [2/5]

◆ DataBlock() [3/5]

◆ DataBlock() [4/5]

◆ DataBlock() [5/5]

Member Function Documentation

◆ isValid()

◆ reload() [1/3]

◆ reload() [2/3]

◆ reload() [3/3]

◆ clear()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ copy()

◆ operator==()

◆ content()

◆ size()

◆ rawDataSize()

◆ matchContent()

◆ GetLengthField()

◆ ValidateLengthField()

◆ rwContent()

◆ rwResize()

◆ rwAppend()

Member Data Documentation

◆ LEN_BIT_SIZE

◆ AFTER_LEN_BYTE_OFFSET
