Description of a virtual channel. More...

#include <tsSVCT.h>

Inheritance diagram for ts::SVCT::Channel:

[legend]

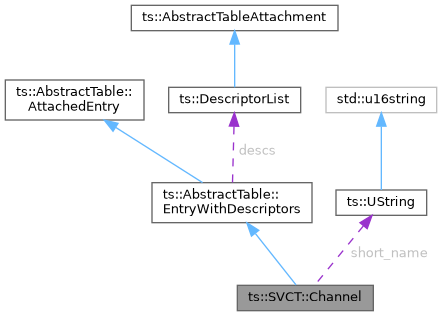

Collaboration diagram for ts::SVCT::Channel:

[legend]

Public Member Functions
	Channel (const AbstractTable *table)
	Constructor.

void	updateService (Service &service) const
	Collect all informations about the service.

Public Attributes
uint64_t	carrier_frequency = 0
	Carrier frequency in Hz. Warning: coded in units of 100 Hz.

uint32_t	carrier_symbol_rate = 0
	Carrier symbol rate in symbols/second.

uint16_t	channel_TSID = 0
	Transport stream id of the TS carrying the channel.

DescriptorList	descs
	List of descriptors for this entry, publicly accessible.

uint8_t	ETM_location = 0
	2 bits, location of Extended Text Message.

uint8_t	FEC_Inner = 0
	FEC inner.

uint8_t	feed_id = 0
	Feed id.

bool	hidden = false
	Hidden service.

bool	hide_guide = false
	Hide associated program guide information.

uint16_t	major_channel_number = 0
	10 bits, major channel number.

uint16_t	minor_channel_number = 0
	10 bits, minor channel number.

uint8_t	modulation_mode = 0
	6 bits, modulation mode.

size_t	order_hint
	Preferred insertion index when serializing the table or NPOS if unspecified.

uint8_t	polarization = 0
	2 bits, polarization.

uint16_t	program_number = 0
	Program number (aka. service id) of the channel.

uint8_t	service_type = 0
	6 bits, ATSC service type.

UString	short_name {}
	Channel short name (up to 7 characters).

uint16_t	source_id = 0
	ATSC source id.

Detailed Description

Description of a virtual channel.

Note: by inheriting from EntryWithDescriptors, there is a public field "DescriptorList descs".

Constructor & Destructor Documentation

ts::SVCT::Channel::Channel ( const AbstractTable * table )

explicit

Constructor.

Parameters

[in] table Parent SVCT.

void ts::SVCT::Channel::updateService ( Service & service ) const

Collect all informations about the service.

Parameters

[in,out] service A service description to update.

size_t ts::AbstractTable::AttachedEntry::order_hint

inherited

Preferred insertion index when serializing the table or NPOS if unspecified.

This is an informational hint which can be used or ignored.
