Template map of subclasses of AttachedEntry. More...

#include <tsAbstractTable.h>

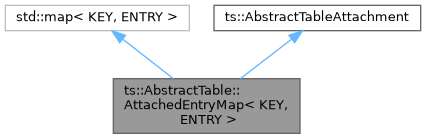

Inheritance diagram for ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >:

[legend]

Collaboration diagram for ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >:

[legend]

Public Types
using	SuperClass = std::map< KEY, ENTRY >
	Explicit reference to the super class.

Public Member Functions
	AttachedEntryMap (const AbstractTable *table, AttachedEntryMap &&other)
	Basic move-like constructor.

	AttachedEntryMap (const AbstractTable *table, bool auto_ordering=false)
	Basic constructor.

	AttachedEntryMap (const AbstractTable *table, const AttachedEntryMap &other)
	Basic copy-like constructor.

void	getOrder (std::vector< KEY > &order) const
	Get the insertion order of entries in the table.

bool	hasTable () const
	Check if this instance has a parent table.

size_t	nextOrder () const
	Get the next ordering hint to be used in an entry to make sure it is considered the last one.

AttachedEntryMap &	operator= (AttachedEntryMap &&other)
	Move assignment operator.

AttachedEntryMap &	operator= (const AttachedEntryMap &other)
	Assignment operator.

ENTRY &	operator[] (const KEY &key)
	Access or create an entry.

const ENTRY &	operator[] (const KEY &key) const
	Access an existing entry in a read-only map.

void	setOrder (const std::vector< KEY > &order)
	Define the insertion order of entries in the table.

void	swap (AttachedEntryMap &other)
	Swap two instances (override of std::list).

const AbstractTable *	table () const
	Get the parent table.

TID	tableId () const
	Get the table id of the parent table.

Standards	tableStandards () const
	Get the standards of the parent table.

Detailed Description

template<typename KEY, class ENTRY>
requires std::derived_from<ENTRY, ts::AbstractTable::AttachedEntry>
class ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >

Template map of subclasses of AttachedEntry.

Template Parameters

KEY	A type which is used as key of the map.
ENTRY	A subclass of AttachedEntry (enforced at compile-time).

Implementation note: Because of a bug in MSVC, the full path of AttachedEntry must be specified in the "requires" directive.

Constructor & Destructor Documentation

◆ AttachedEntryMap() [1/3]

template<typename KEY , class ENTRY >

ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::AttachedEntryMap	(	const AbstractTable *	table,
		bool	auto_ordering = `false`
	)

explicit

Basic constructor.

Parameters

[in]	table	Parent table. A descriptor list is always attached to a table.
[in]	auto_ordering	If true, each time an entry is added, its order_hint, if previously unset (meaning set to NPOS) is set to one higher than the highest order_hint in all entries. This ensures that the order of insertion is preserved, at the expense of a small performance penalty each time an entry is added.

◆ AttachedEntryMap() [2/3]

template<typename KEY , class ENTRY >

ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::AttachedEntryMap	(	const AbstractTable *	table,
		const AttachedEntryMap< KEY, ENTRY > &	other
	)

Basic copy-like constructor.

Parameters

[in]	table	Parent table. A descriptor list is always attached to a table.
[in]	other	Another instance to copy.

◆ AttachedEntryMap() [3/3]

template<typename KEY , class ENTRY >

ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::AttachedEntryMap	(	const AbstractTable *	table,
		AttachedEntryMap< KEY, ENTRY > &&	other
	)

Basic move-like constructor.

Parameters

[in]	table	Parent table. A descriptor list is always attached to a table.
[in,out]	other	Another instance to move.

Member Function Documentation

◆ operator=() [1/2]

template<typename KEY , class ENTRY >

ts::AbstractTable::AttachedEntryMap< KEY, ENTRY > & ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::operator= ( const AttachedEntryMap< KEY, ENTRY > & other )

Assignment operator.

The parent table remains unchanged.

Parameters

[in] other Another instance to copy.

Returns: A reference to this object.

◆ operator=() [2/2]

template<typename KEY , class ENTRY >

ts::AbstractTable::AttachedEntryMap< KEY, ENTRY > & ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::operator= ( AttachedEntryMap< KEY, ENTRY > && other )

Move assignment operator.

The parent table remains unchanged.

Parameters

[in,out] other Another instance to move.

Returns: A reference to this object.

◆ swap()

template<typename KEY , class ENTRY >

void ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::swap ( AttachedEntryMap< KEY, ENTRY > & other )

Swap two instances (override of std::list).

Parameters

[in,out] other Another instance to swap with the current object.

◆ operator[]() [1/2]

template<typename KEY , class ENTRY >

ENTRY & ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::operator[] ( const KEY & key )

Access or create an entry.

Parameters

[in] key The key of the entry to access.

Returns: A reference to the retrieved or created entry.

◆ operator[]() [2/2]

template<typename KEY , class ENTRY >

const ENTRY & ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::operator[] ( const KEY & key ) const

Access an existing entry in a read-only map.

Parameters

[in] key The key of the entry to access.

Returns: A constant reference to the retrieved entry.

Exceptions

std::out_of_range When the entry does not exist.

◆ getOrder()

template<typename KEY , class ENTRY >

void ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::getOrder ( std::vector< KEY > & order ) const

Get the insertion order of entries in the table.

The result is based on the order_hint fields in the AttachedEntry structures.

Parameters

[out] order Order of entries by key in the table.

◆ setOrder()

template<typename KEY , class ENTRY >

void ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::setOrder ( const std::vector< KEY > & order )

Define the insertion order of entries in the table.

This can be precisely set using the order_hint fields in the AttachedEntry structures. This method is a helper which sets these fields.

Parameters

[in] order Order of entries by key in the table.

◆ nextOrder()

template<typename KEY , class ENTRY >

size_t ts::AbstractTable::AttachedEntryMap< KEY, ENTRY >::nextOrder ( ) const

Get the next ordering hint to be used in an entry to make sure it is considered the last one.

Returns: The next ordering hint to be used.

◆ tableId()

TID ts::AbstractTableAttachment::tableId ( ) const

inherited

Get the table id of the parent table.

Returns: The table id of the parent table or TID_NULL if there is none.

◆ tableStandards()

Standards ts::AbstractTableAttachment::tableStandards ( ) const

inherited

Get the standards of the parent table.

Returns: The standards of the parent table or NONE if there is none.

◆ table()

const AbstractTable * ts::AbstractTableAttachment::table ( ) const

inlineinherited

Get the parent table.

Returns: The parent table or zero if there is none.

◆ hasTable()

bool ts::AbstractTableAttachment::hasTable ( ) const

inlineinherited

Check if this instance has a parent table.

Returns: True if there is one parent table.

The documentation for this class was generated from the following file:

tsAbstractTable.h
